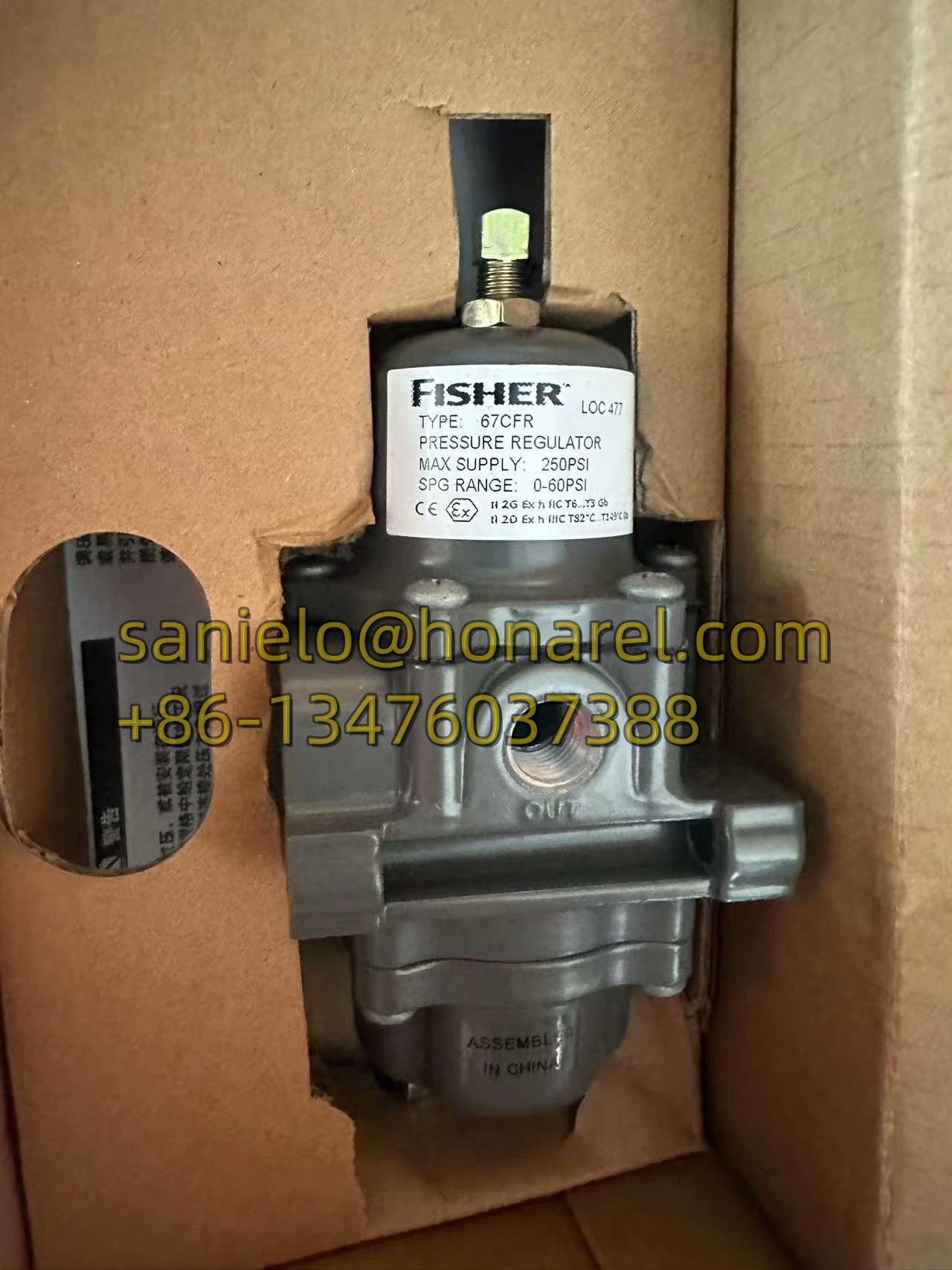

FISHER 67CFR-362 | New Type: 67CF-1663-38615 | 250psi Outlet Pressure Filter Regulator
Fisher 67CFR-362 instrument filter regulator, 250 PSI max inlet, 5μm filter, with internal relief.
Product Details
Fisher 67CFR-362 / 67CF-1663-38615 Instrument Supply Filter Regulator — Technical Specifications
The Fisher 67CFR-362 (also known as 67CF-1663-38615) is a high-precision, direct-operated instrument supply filter regulator designed for general-purpose air and gas service. Manufactured by Fisher (Emerson), this compact regulator combines an integrated fine-mesh filter with a high-accuracy pressure regulator, making it ideal for pneumatic and electropneumatic controllers, I/P transducers, and other instrument applications.
Operating Pressure:
- Maximum Inlet Pressure (Body Rating): 250 psig (17.2 bar)
- Maximum Outlet (Casing) Pressure: 50 psig (3.4 bar) above outlet pressure setting
- Outlet Pressure Range: 0 – 125 psig (0 – 8.6 bar), depending on internal spring configuration
- Standard Spring Range: 0 – 35 psig (for 67CFR-362)
Filtration:
- Filter Element: 5 micron high-capacity filter
- Filter Cup Material: Stainless steel
- Internal relief valve for overpressure protection
Connection:
- Inlet/Outlet Connections: 1/4" NPT (female)
- Option: Can be directly mounted to Fisher DVC6200 series smart positioners
Body & Construction:
- Body Material: Aluminum alloy (die-cast)
- Bolts: Stainless steel
- Internal relief valve (built-in)
- Compact and lightweight design
- Powder paint coating for impact, abrasion, and corrosion resistance
Temperature Range:
- Operating Temperature: -20°F to +160°F (-29°C to +71°C)
- (Standard Buna-N seals; other seal materials available for higher temperatures)
Compatible Media:
- Air
- Natural gas
- Other non-corrosive gases
- Compatible with instrument air systems
Model Designation:
| Code | Description |
|---|---|
| 67C | Standard regulator |
| 67CR | Regulator with internal relief (soft seat) |
| 67CF | Regulator with filter |
| 67CFR | Filter regulator with internal relief |
| 67CS | Stainless steel body |
| 67CSR | Stainless steel with internal relief |
| 67CFS | Stainless steel with filter |
| 67CFSR | Stainless steel with filter and internal relief |
Key Features:
- Integrated 5-micron filter protects downstream equipment
- Internal relief valve prevents overpressure conditions
- High flow capacity for fast-acting valves
- Compact design for direct mounting on instruments
- Easy filter element replacement and maintenance
- No external sensing line required
- Powder paint coating for durability
Applications:
- Pneumatic and electropneumatic controllers
- I/P transducers and converters
- Smart valve positioners (e.g., Fisher DVC6200)
- Pneumatic actuators
- Air chucks, air jets, and spray guns
- Oil & gas production (wellhead platforms)
- Chemical & petrochemical processes
- Power generation (turbine control)
- Industrial automation
